- Place of Origin: Gaomi,Shandong
- Brand Name: Better
- Model Number: 001

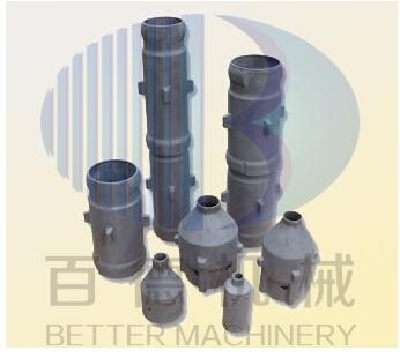

For cantilevered ceramic radiant tubes, the mechanical distribution of stress can be simulated based
on the dimensions of the tubeRadiant tubes, flame tubes and recuperative burners are commonly
used in heat treating furnaces as parts of an indirect heating system.
Typical applications include heat treatment of steel and powder metallurgy parts.
Radiant tubes are designed to separate the product (typically steel parts) being manufactured from
combustion gases.
Advantages of ceramic radiant tube systems:
1.Increased service-life
2.Reduced maintenance costs
3.Lower energy consumption
4.Optimum efficiency
5.Excellent creep resistance up to max. application temperature of T=1380celsius degrees
- Place of Origin: Gaomi,Shandong
- Brand Name: Better
- Model Number: 001
item | unit | data |
temperature of application | C | 1380 |
density | g/cm3 | >=3.02 |
open porosity | % | <0.1 |
bending strength | Mpa | 250(20C) |
Mpa | 280(1200C) | |
modulus of elasticity | Gpa | 330(20C) |
Gpa | 300(1200C) | |
thermal conductivity | W/m.k | 45(1200C) |
coefficient of thermal expansion | K-1*10-6 | 4.5 |
rigidity | 13 | |
acid-proof alkaline | Excellent |
